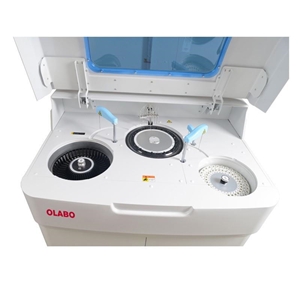

BK-400 Auto Chemistry Analyzer

Get Price

Product details

BK-400 Auto Chemistry Analyzer 400 Tests/Hour With 37 Sample Positions

Features

1. 400 Tests per hour.

2. 90 Reagent positions.

3. 120 Reaction cuvettes.

4. Buit-in sample barcode system optional.

5. 60 Sample positions (90 sample positions optional).

6. Probe with anti-collision function, liquid level dectection function.

Technical Parameters

Model	BK-400
Throughput	400 Test/hour
Analysis Method	End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certification	CE, FDA, ISO9001, ISO14001, ISO13485
Sample Positions	60 or 90 sample positions, built-in barcode system available
Reagent Positions	45 refrigerated reagent positions
Sample Volume	2~70μl
Reagent Volume	20~350μl
Probe	Teflon coating ,with anti-collision function, liquid leveldetection function
Probe Washing	Automatic washing interior and exterior
Reagent Cooling	Refrigerated tray with independent switch
Temperature Control	37±0.1℃, real-time monitoring
Cuvettes	120reusable cuvettes, optical length 6mm
Mixer Probe	Independent stirring
Washing	Automatic cuvettes washing
STAT function	YES
Light Source	12V/30W halogen-tungsten lamp
Spectrophotometry	Post-spectral spectrophotometry
Wavelength	340,405,450,510,546,578,630,700nm
Absorbance	0~3.0Abs
Calibration	Linear:K factor, 1-point ,2-point and multipoint linear
	Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Quality Control	Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Software	Windows 7/8/10 , 32or 64bit
LIS System	Bi-direction,support HL7 protocol
Interface	LAN port access
Printer	External,multiple reporting mode available
Power Supply	AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
Temperature	10～30℃
Water Consumption	Deionized water:12L/H
Humidity	30-80%
External Size (WDH)	11677801016mm
Net Weight	193kg
Package Size (WDH)	13489281399mm
Gross Weight	267kg
