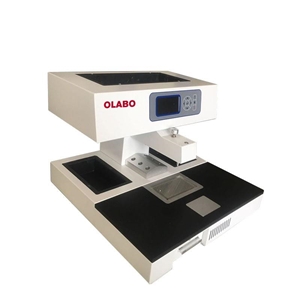

OLABO OLB-TE I Tissue Embedding Center &Cooling Plate


Introduction

Paraffin embedding machine is a kind of equipment which embeds the tissue wax blocks of human body or animal and plant specimens after dehydration and wax immersion for histological diagnosis or research after slicing. It is suitable for medical colleges, hospital pathology department, medical research institutions, animal and plant research units and food testing departments.

Features

* Microprocessor Control for temperature,made in the USA

* The Embedding Module and Cryo Module can be assembled freely

* Flexible heating mechanism, Dual-protection; Safe, Reliable and Energy-Saving

* Fully programmable computer controls allow automatic system start and stop anytime within a week

* Automatic Memory and Restoration: After start, all preset temperature data are automatically stored

* Paraffin Chamber, Paraffin Dispenser, Left and Right Thermal Storage Compartments, and Heating Plate (working area) are individually controlled

Optional

OLB-CPI Cooling Plate:

Working Temp.: RT-40℃, Temp. can not be adjustable. The lowest can be -30℃.

Working Size: 320*300mm

Parameters

Model OLB-TEI
Paraffin Chamber Capacity 3L
Temp.Range of Forceps Wells 55~70℃
Paraffin-melting Chamber
Thermal Storage Compartments
Heated Working Areas
Paraffin Dispenser
Temp. Precision ±1%
Material of Work Table Granite, easy to clean
Paraffin Flow Control Finger touch plate and optional foot pedal
Power Supply AC110/220V±10%, 50/60Hz
Consumption 650W
External Size(W*D*H) 525*550*385mm
Package Size(W*D*H) 630*670*520mm
Gross Weight 41kg
Optional Accessory BK-CPI Cooling Plate
Package Size of OLB-CPI (W*D*H) 700*450*530mm
Gross Weight of OLB-CPI 37kg
