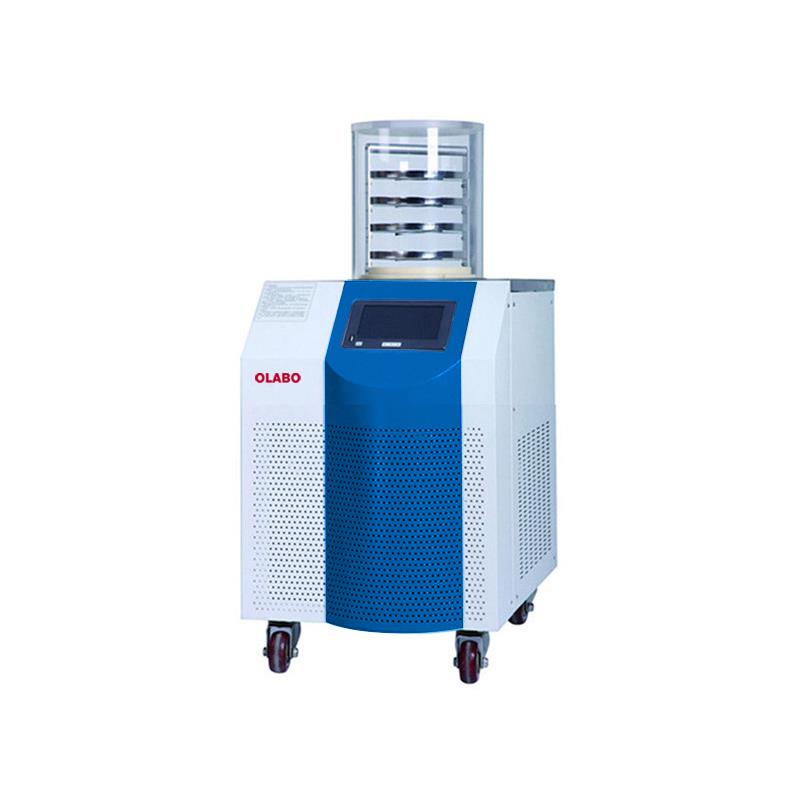

Laboratory BK-FD12S Vacuum Freeze Dryer



Features
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Technical Parameters

Model BK-FD12S
Type Standard chamber
Freeze Drying Area 0.12 m2
Tray 4 pcs
Height Between Trays 50mm
Cold Trap Temperature ≤-60/-80
Cold Trap Capacity 9.5L
Cold Trap Size (D*H) Φ215*260mm
Vacuum Degree <10 Pa
Water Capture Capacity 4kg/24h
Tray Size (D*H) Φ200*20mm
Freeze Drying Time 24h
Loading Capacity/Shelf (Liquid) 0.3L
Total Loading Capacity (Liquid) 1.2L

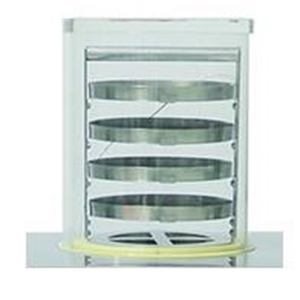

Drying Chamber Size (D*H) Φ260*310mm
Can Load Vials Qty Φ22mm 260
Φ16mm 480
Φ12mm 920
Refrigerant R600a+R290+R23
Cooling System Air cooling
Consumption -56: 0.9kW,-80: 1.5kW
Power Supply AC220V, 50Hz, 60Hz (single phase);
110V/220V, 60Hz (single phase, only for -56)

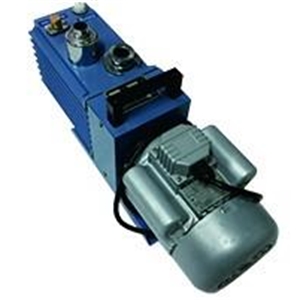

Standard Accessory Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model OLB-FD12P/PT)
Optional Function & Accessory Tray heating (for all models),
Cold trap defrosting (for all models),
Conical-mouth flask and wide-mouth flask (for OLB-FD12P/PT)
Import vacuum pump
External Size (W*D*H) 460*620*920/1370mm
Package Size (W*D*H)mm 590*710*1170/90kg
Gross Weight 340*340*460/12kg
590*380*220/22kg
