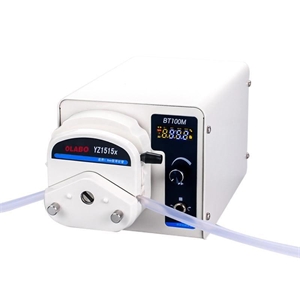

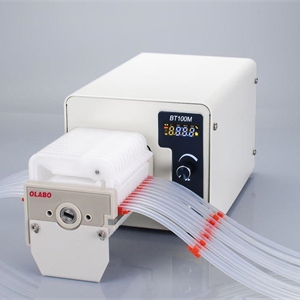

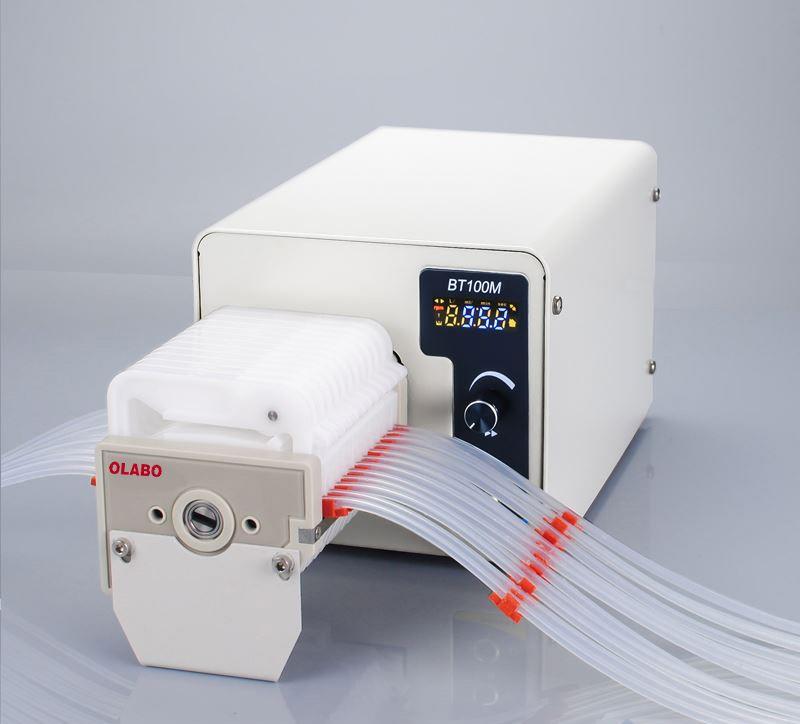

Standard Peristaltic Pump BTM Series

Model: BT100M
Brand:
Ship From:
Price: Inquiry
MOQ: 1
Shipping: Within 10-15 working days.

Get Price

Best sellers
New arrivals

Model: BJPX-C50II

OLABO BJPX-C50II Microbiology CO2 incubator
Model: BIOBASE 1000

Auto ELISA Processor
Model: BK-ESR40

OLABO Auto ESR Analyzer
Model: BJPX-MT250

Medicine Stability Test Chamber(BJPX-MT)
Model: BK-CA02

Automatic Blood Coagulation Analyzer Open System BK-CA02

Product details

Shipping methods

Payment methods

Data download

Features:
*LED display.
*Support RS485 / MODBUS communication protocol, analog control (0-5V, 0-10V, 4-20mA...) foot switch control.
*Program control.
*Memory functiondata will be stored in time after power off.

*Full speed function one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc.

Technical Parameters:

Model	BT100M	BT300M	SPP-BT600M
Pump Head	YZ1515X, YZ2515X, DG series(only BT100M)
Speed Range	0.1 -100rpm(Reversible)	0.1 -300rpm(Reversible)	0.1-600rpm(Reversible)
Speed Resolution	0.1 rpm
Flow Range	0.0015-380ml/min	0.007-1140ml/min	0.007-2280ml/min
Filling Precision	<±0.5%
Display	4-LED display
Back Suction Speed	10-100rpm	10~300rpm
Optional Accessory	Foot switch
Environmental Conditions	Temperature: 0 ~ 40 °C; Humidity: <80%,no condensation
Consumption	22W	35W	50W
Power Supply	AC110/220V±10%, 50760Hz
Instrument Size(WDH)	234154143mm		254184150mm
Package Size(WDH)	393243243mm		403283253mm
Gross Weight	5.15kg		5.8kg
